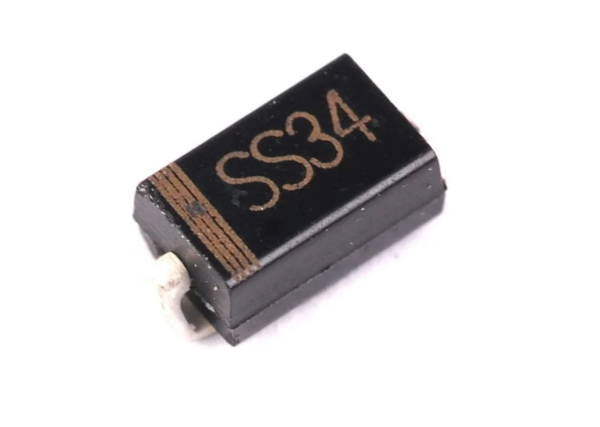

SS34 Schottky Diode for High-Speed Switching (Pack of 20)
$ 66.10
SS34 Schottky Diode for High-Speed Switching is a semiconductor diode formed by the junction of semiconductor and metal. It has a low forward voltage drop and a very fast switching action. The diode is ideal for free-wheeling, secondary rectification, and reverse polarity protection applications. Features: Guard ring for overvoltage protection Low power losses, high efficiency Low forward voltage drop High surge capability Maximum repetitive peak reverse voltage(VRRM): 40V Maximum RMS voltage (VRMS): 28V Maximum DC blocking voltage (VDC): 40V Maximum average forward rectified current at TL (IFAV): 3A Peak forward surge current(IFSM): 100A Voltage rate of change (rated VR) (dV/dt): 10,000V/?s Operating junction temperature range (TJ): -55 to 125?C Storage temperature range (TSTG): -55 to 150?C Package Includes: 1 x SS34 Schottky Diode for High-Speed Switching (2 pcs). SKU: RM005781 Category: Diodes and Bridge Rectifiers (SMD) Warehouse Code: R00022-S06-P01-Z01
